3 Overview of R and R Studio

What is R ?

R (R Core Team, 2024), is a powerful language and environment for statistical computing and graphics.
R is an open-source programming language, widely used among statisticians, data analysts, and researchers for data manipulation, calculation, and graphical display.
R is not just a programming language, but also an environment for interactive statistical analysis.
It was developed by Ross Ihaka and Robert Gentleman at the University of Auckland, New Zealand, and is currently maintained by the R Development Core Team.
It is a GNU project and is freely available under the GNU General Public License.
Packages: The R community is known for its active contributions in terms of packages. There are thousands of packages available in the Comprehensive R Archive Network (CRAN), covering various functions and applications.
Platform Independent: R is available for various platforms such as Windows, MacOS, and Unix-like systems.

3.1 Installation and Setup

Install R

Download and install R from the Comprehensive R Archive Network CRAN and choose the relevant OS (Windows,mac,linux).

Install RStudio

RStudio is a recommended integrated development environment (IDE) for R. Download and install RStudio form POSIT and choose the relevant OS (Windows,mac,linux).

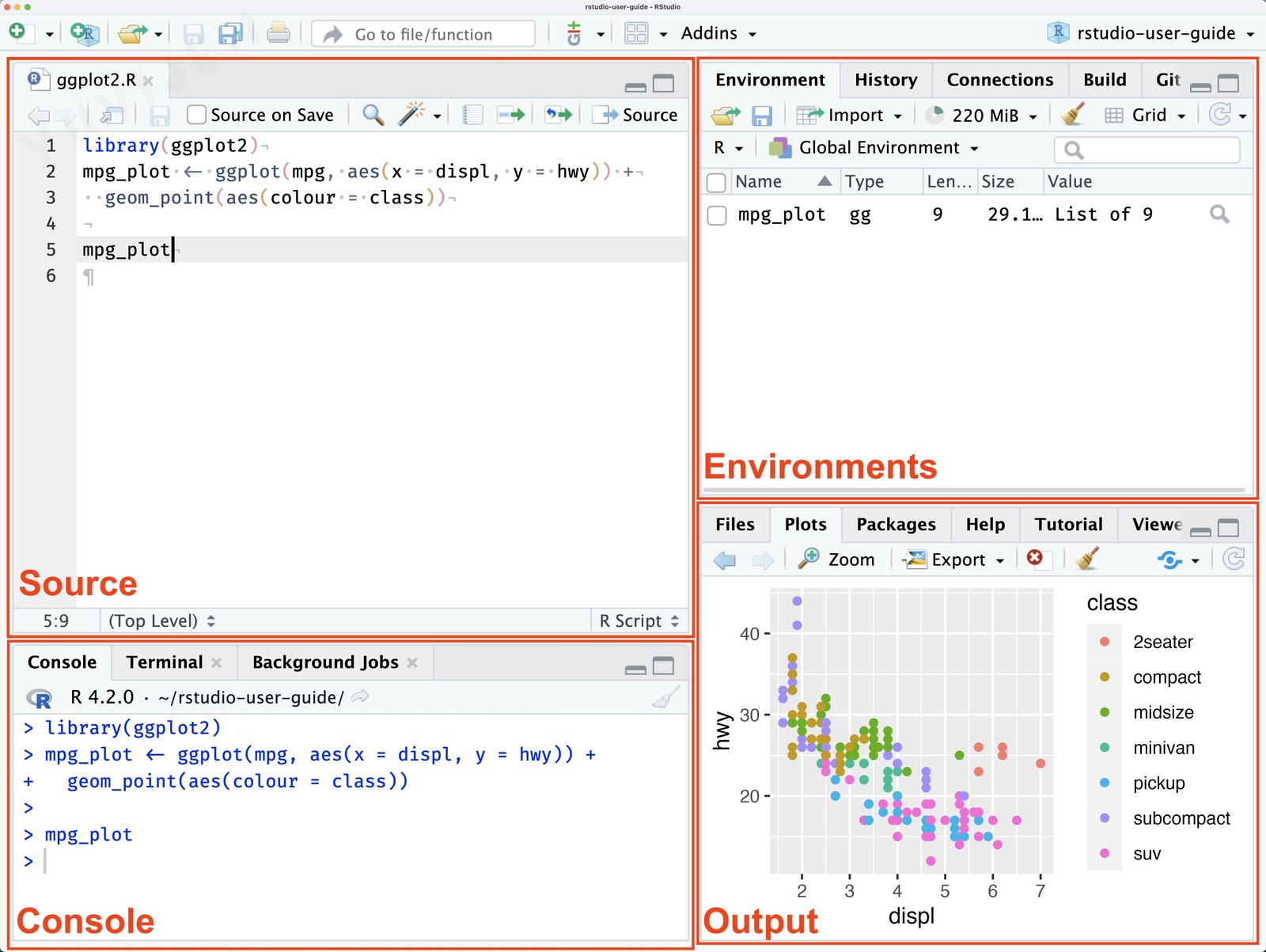

3.2 Overview of RStudio Panels

RStudio is a widely-used Integrated Development Environment (IDE) for R programming.
RStudio’s design enhances the efficiency and user-friendliness of coding, testing, and data analysis in R.
Its panels and features provide a comprehensive environment that caters to the needs of both novice and experienced R programmers.
It features a user-friendly interface and is divided into several panels, each designed for specific tasks. Here’s a detailed overview of these panels.

Source Panel (Top-Left by Default)

Source Panel

Function

This panel is where you write and edit your R scripts and R Markdown documents.

Features

Syntax highlighting for R code.
Code completion and hinting.
Ability to run code directly from the script.

Console Panel (Bottom-Left by Default)

Console Panel

Function

This is where R code is executed interactively.

Features

Direct execution of R commands.
Displays results of script execution.
Keeps a history of your commands.

Environment/History Panel (Top-Right by Default)

Environment/History Panel

Environment Tab

Shows the current working dataset and variables in memory.
Allows for inspection and management of data structures and variables.

History Tab

Records all commands run in the Console.
Enables re-running and insertion of previous commands into scripts.

Output/ Files/ Plots/ Packages/ Help/ Viewer Panel (Bottom-Right by Default)

Output/ Files/ Plots/ Packages/ Help/ Viewer Panel

Files Tab

Manages project files and directories.
Sets the working directory.

Plots Tab

Displays graphs and charts.
Allows for the export of plots.

Packages Tab

Lists and manages R packages.
Provides access to package documentation.

Help Tab

Offers R documentation and help files.
Useful for learning about R functions and packages.

Viewer Tab

Displays local web content such as HTML files from R Markdown or Shiny apps.

Additional Features

Toolbar: Quick access to common tasks like saving, loading, and running scripts.
Customization: Ability to rearrange the layout of tabs and panes.
Version Control: Integrated support for Git and SVN.

3.3 R Syntax and R Script

3.3.1 R Syntax

R is a powerful programming language used extensively for statistical computing and graphics. It provides a wide array of techniques for data analysis, including linear and nonlinear modeling, classical statistical tests, time-series analysis, classification, clustering, and more. Its syntax allows users to easily manipulate data, perform calculations, and create graphical displays. Here’s a breakdown of some fundamental aspects of R syntax and an example to illustrate how it works.

Basic Syntax Components

Variables: In R, you can create variables without declaring their data type. You simply assign values directly with the assignment operator <- or =.
Comments: Comments start with the # symbol. Everything to the right of the # in a line is ignored by the interpreter.
Vectors: One of the basic data types in R is the vector, which you create using the c() function. Vectors are sequences of elements of the same type.
Functions: Functions are defined using the function keyword. They can take inputs (arguments), perform actions, and return a result.
Conditional Statements: R supports the usual if-else conditional constructs.
Loops: For iterating over sequences, R provides for, while, and repeat loops.
Packages: R’s functionality is extended through packages, which are collections of functions, data, and compiled code. You can install packages using the install.packages() function and load them with library().

3.3.2 R Script

Rscript is a tool for executing R scripts directly from the command line, making it easier to integrate R into automated processes or workflows.
It’s part of the R software environment, which is widely used for statistical computing and graphics. Rscript enables you to run R code saved in script files (typically with the .R extension) without opening an interactive R session.
This is particularly useful for batch processing, automated analyses, or running scripts on servers where a graphical user interface is not available.

Creating an R Script in RStudio

Creating and using R scripts in RStudio is a fundamental skill for anyone working with data in R. RStudio, being a powerful IDE for R, streamlines the process of writing, running, and managing R scripts. Here’s a concise guide based on insights from various sources:

Start a New Script: To begin, navigate to File -> New File -> R Script. This opens a new script tab in the top-left pane where you can write your code.
Writing Code: You can type your R code directly into this script pane. Common tasks include importing data, data manipulation, statistical analysis, and plotting. For instance, to create and print a variable, simply type something like result <- 3 followed by print(result) to see the output in the Console pane.
Running Code: To execute your code, you can click the Run button at the top of the script pane, or use keyboard shortcuts (e.g., Ctrl+Enter on Windows). The output will appear in the Console pane at the bottom.

Basic R Scripts Examples

Below are a few examples of basic R scripts that demonstrate common tasks in R.

Example 1: Hello World

A simple script that prints “Hello, World!” to the console.

Example 2: Basic Arithmetic

This script performs basic arithmetic operations and prints the results.

Example 3: Creating and Plotting a Vector

This example demonstrates how to create two numerical vectors, perform an operation on them, and then plot the result.

In this example:

Two vectors, vector1 and vector2, are created using the c() function.
These vectors are then added together, resulting in the result vector. The addition is done element-wise: the first element of vector1 is added to the first element of vector2, and so on.
Finally, the plot() function is used to visualize result. The type = "o" argument specifies that both the points and the lines connecting them should be plotted, and col = "red" changes the color of the plot to red.

These examples introduce the basics of writing and running R scripts with Rscript. As you become more familiar with R’s syntax and features, you can write more complex scripts to automate a wide range of data analysis and statistical tasks.

Summary

Concept	Description
What R Is
What R Is	Open-source language and interactive environment for statistical computing, data analysis, and graphics
Origins of R	Developed by Ross Ihaka and Robert Gentleman at the University of Auckland and maintained by the R Core Team
CRAN	Comprehensive R Archive Network, the central repository of community-contributed R packages
Platform Independence	Runs on Windows, macOS, and Unix-like systems, making the same code portable across operating systems
Installation and Setup
Install R	Downloaded from the Comprehensive R Archive Network for the relevant operating system
Install RStudio	Integrated development environment from Posit that bundles console, editor, and viewers into one workspace
RStudio Panels
Source Panel	Top-left pane for writing and editing R scripts and R Markdown documents with syntax highlighting
Console Panel	Bottom-left pane for executing R commands interactively and inspecting results and command history
Environment and History Panel	Top-right pane showing objects currently in memory and a log of commands previously executed
Files, Plots, Packages, Help, Viewer Panel	Bottom-right pane for files, plots, package management, help pages, and HTML viewer
R Syntax Essentials
Assignment Operator	Uses `<-` or `=` to bind a value to a name, with `<-` preferred by convention
Comments	Everything after the `#` symbol on a line is ignored by R, useful for documenting intent
Vectors	One-dimensional sequences of values of the same type, created with the `c()` combine function
Functions	Reusable blocks defined with the `function` keyword that accept arguments and return a result
Conditional Statements	`if`, `else if`, and `else` control which branch of code runs based on a condition
Loops	`for`, `while`, and `repeat` iterate a block of code over sequences or until a condition changes
Packages	Collections of functions and data installed with `install.packages()` and loaded with `library()`
R Scripts and Execution
R Script File	Text file with the `.R` extension that stores R code for reuse, sharing, and version control
Rscript Command Line Tool	Command-line tool that executes R scripts outside RStudio, useful for automation and batch jobs
Running Code in RStudio	Click Run in the script pane or press `Ctrl+Enter` (Windows) to send the current line to the console
